Features of ESC Medicams Medical Surgical Recorder with 4k input Resolution to record Endoscopy and Laparoscopy procedures.

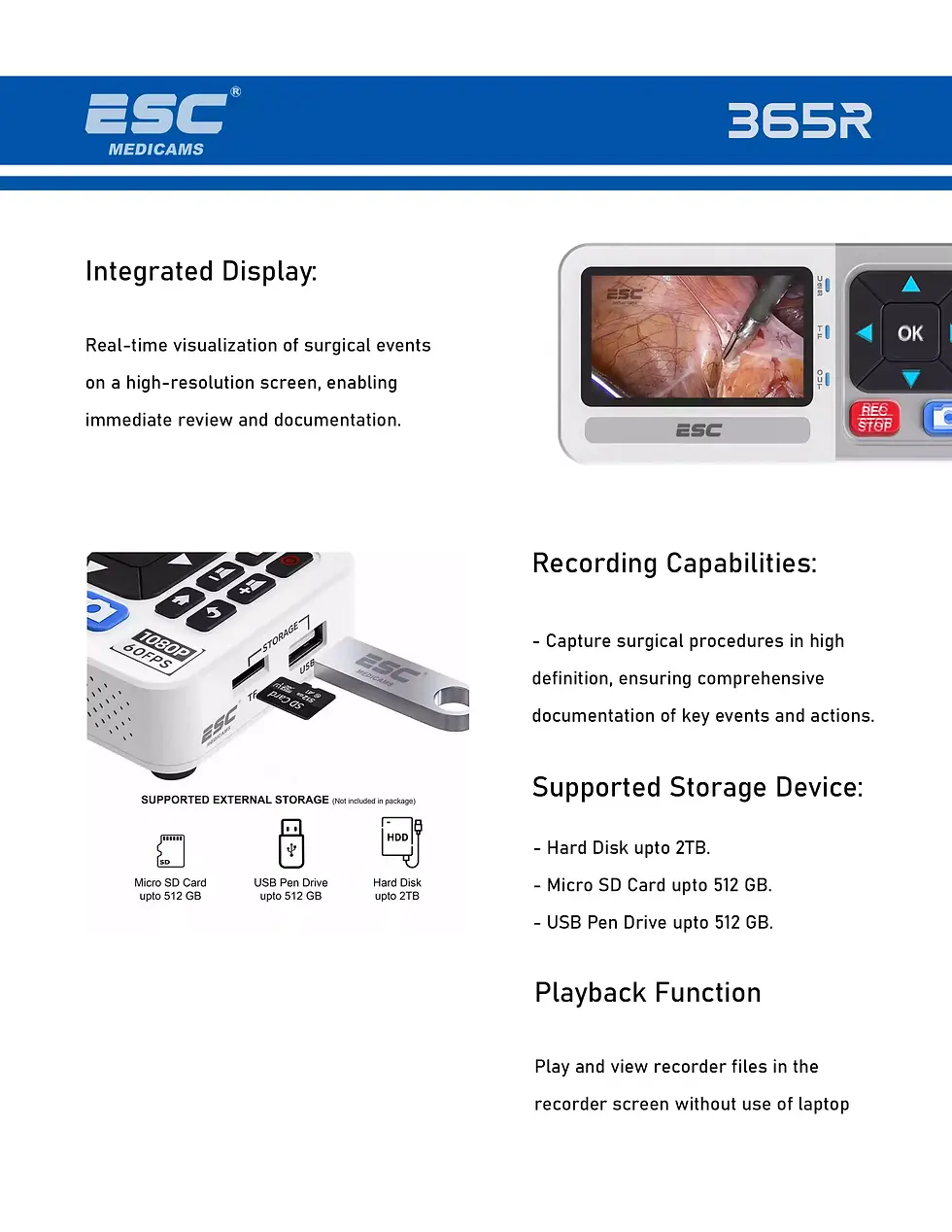

  • Integrated Display: Real-time visualization of surgical events on a high-resolution screen, enabling immediate review and documentation.
  • Recording Capabilities: Capture surgical procedures in high definition, ensuring comprehensive documentation of key events and actions.
  • Customizable Settings: Tailor recording preferences and display options to suit specific surgical procedures and user preferences, maximizing versatility.
  • Data Management: Efficient storage and retrieval of recorded data, facilitating post-operative review and analysis.
  • Enhanced Visibility: Improve surgical documentation with clear and detailed visualization of procedures, enhancing accuracy and completeness.
  • Real-time Feedback: Instantly review surgical events as they occur, enabling immediate adjustments and interventions as needed.
  • Efficient Communication: Share recorded procedures with colleagues for consultation and collaboration, fostering interdisciplinary teamwork and knowledge sharing.
  • Streamlined Workflow: Simplify documentation processes with an all-in-one solution, reducing administrative burden and improving efficiency.
  • Optimized Training: Utilize recorded procedures for training purposes, enhancing educational opportunities for medical professionals.

* HDMI 1080p Loop-out
* Recording in 720p/1080p
* Schedule Recording
* Support Snapshot in Recording
* USB Drive or TF Card Storage
* Support Playback
* Remote Control
* Compact and portable
* Easy to use

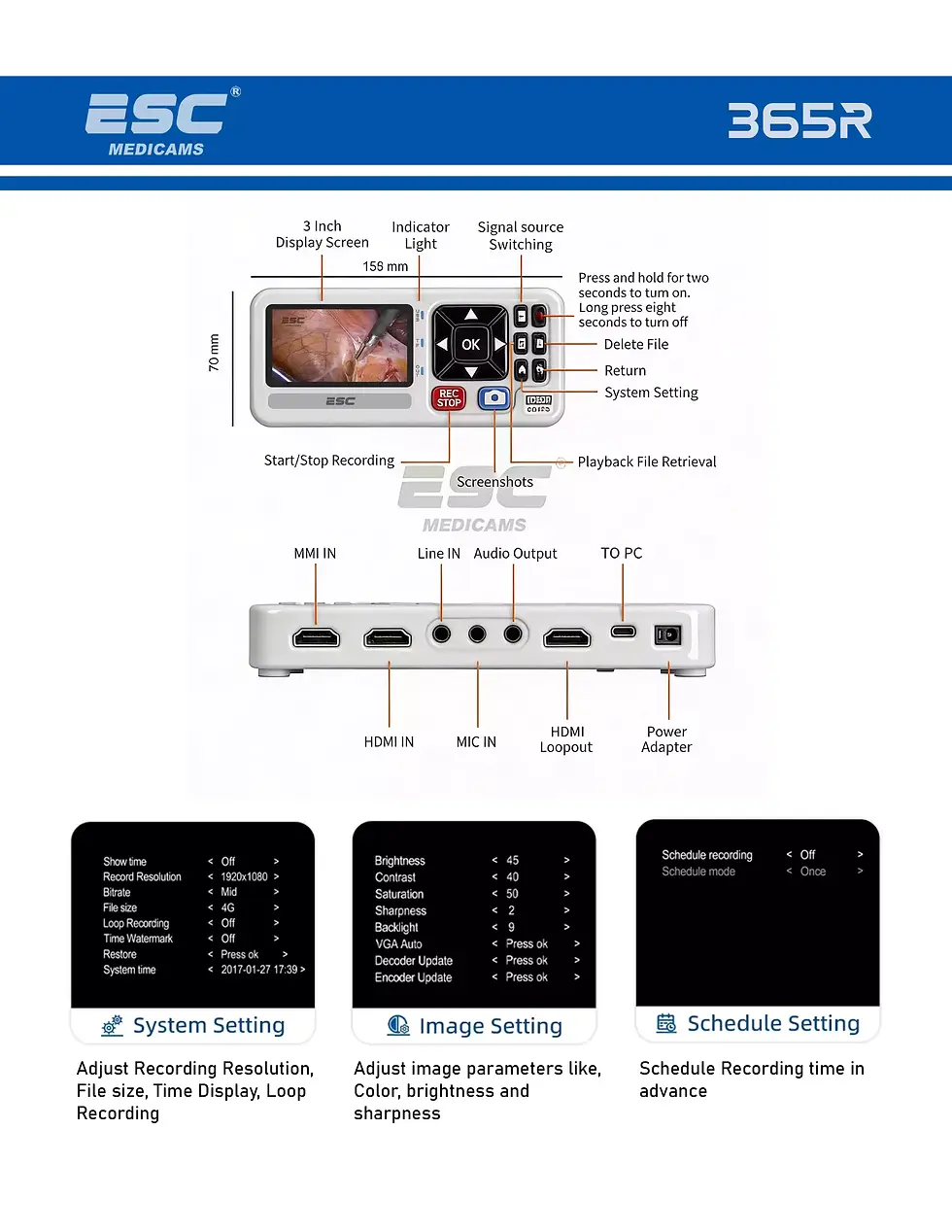

* Video Input (Switchable): 1xHDMI, 1xVGA, 1xCVBS, 1xYPbPr
* Video Resolution: 4096x2160p30, 1920x1080 at 60P/50p, 1920x1080 at 60i/50i/1280x720 at 60p/50p 720x576i/720x480i
* Loop-out: 1xHDMI (1080p)
* Audio: HDMI/RCA Audio/External Line In
* Display Screen: 3 Inch
* Remote Control: Yes
* Screenshot in Recording: Yes
* Playback: Yes

Alone Mode:
* Record Resolution: 1920x1080/1280x720/1280x1024/1024x768
* Storage Device: USB Drive (up to 512G), Hard disk (up to 2T); SD card (up to 512G)
* Storage File System: FAT32/exFAT/NTFS
* Record Format: MP4 (H.264 Codec)
* Video Bitrate: Low 4MB/Mid 10MB/High 18MB
* Audio Bitrate: 128KB
* Size of Each File: 4G (FAT32) or 16G (NTFS/exFAT)
* Schedule Recording: Support

Computer Mode:
* Record Resolution: 1920x1080/1280x720/1280x1024/1024x768
* Compatible UVC/UAC: Yes
* Compatible System: For Win10/Mac OS/Linux
* Compatibility with 3rd application software: For OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype
* Attached Software: UXplayer (buy separately)

* Language: English/Chinese/Japanese/Italian
* Dimension (WxLxH): 158 x 70 x 25mm/6.2 x 2.8 x 1"
* Net Weight: 0.18kg/0.4lb
* Temperature: 0-55℃ (Working); -20 to 80℃ (Storage)
* Power/Consumption: 12V DC 1.0A/5W

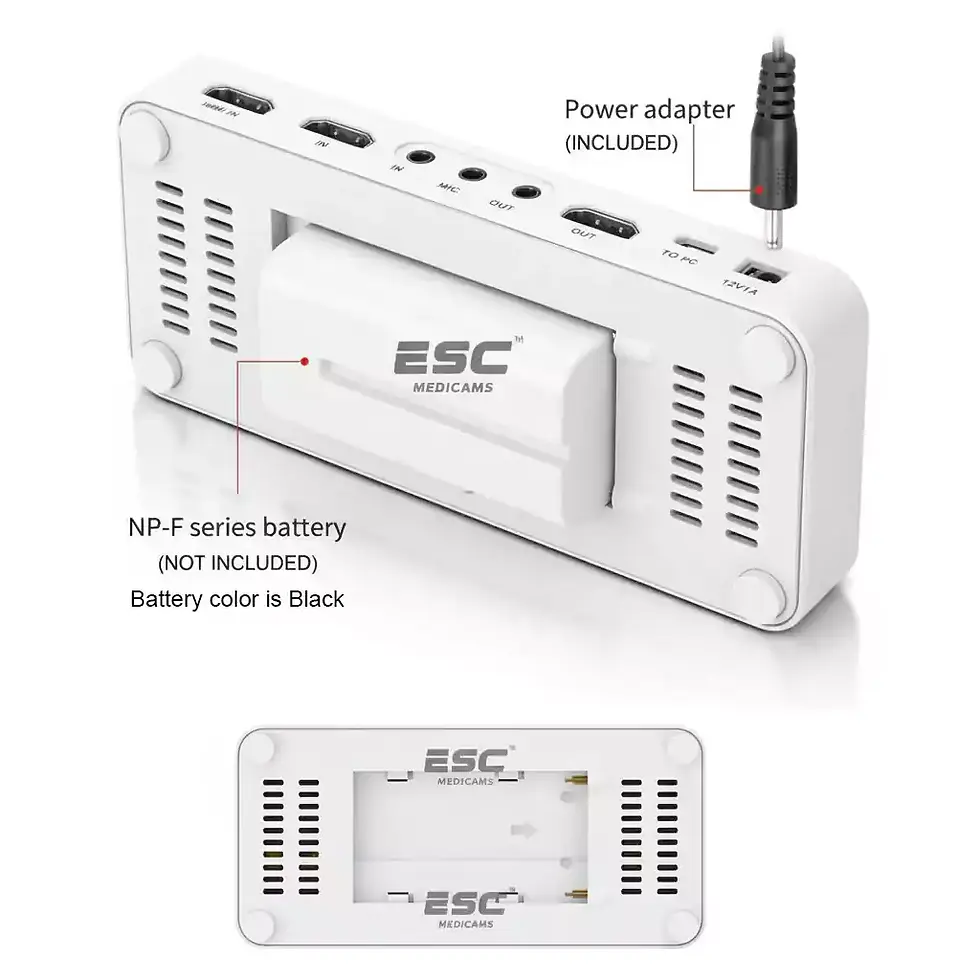

* It can also be powered by series F batteries, including NP-F550/750/970. Batteries are not included in the package.

4K Medical Surgical Recorder for Laparoscopy

SKU: 140.000
