Surgical Medical Recorder
4k and Full HD Medical Surgical Recorder for capturing images and recording videos in Endoscopy and Laparoscopic surgeries.
​
Model : REC-365R
Overview

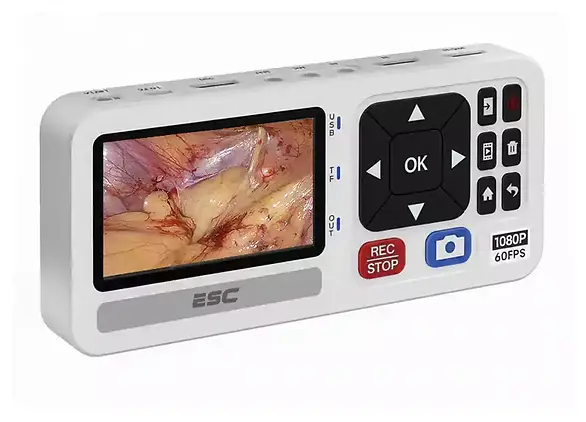

ESC Medicams REC-365R 4K and Full HD Medical Surgical Recorder is designed to deliver exceptional clarity in endoscopic and laparoscopic surgeries. It enables seamless image capturing and video recording with high precision, ensuring every detail is preserved for review, teaching, or documentation. The recorder allows direct saving to a USB drive or SD card, making data transfer simple, fast, and secure. With user-friendly operation and reliable performance, it is an essential tool for modern surgical workflows.
Features
🔹 Integrated Display
-
Real-time visualization of surgical events on a high-resolution screen, enabling immediate review and documentation.
​
🔹 Recording Capabilities
-
Capture surgical procedures in high definition, ensuring comprehensive documentation of key events and actions.
​
🔹 Playback Function
-
Play and view recorder files in the recorder screen without use of laptop
Storage
Supports multiple external storage options, including external hard drives up to 2TB, SD cards up to 512GB, and USB pen drives up to 512GB. This flexibility allows surgeons and staff to choose the most suitable storage medium for their workflow, while making it easy to archive, transfer, and share surgical recordings.
Record Surgeries from Endoscopy Camera
Capture Full HD videos and high-resolution snapshots directly from endoscopy cameras. Recorder 365R ensures seamless connectivity with various brands of endoscopy and laparoscopy cameras through an HDMI to DVI interface, delivering reliability and versatility in surgical use and also allows connection to external large medical monitors for enhanced viewing.
Supports Battery
Medical Recorder REC-365R is powered by power adapter directly which is provided along with the recorder by default. It has the provision or slot for the battery where customer can attach their external battery and use it without the power adapter. Battery is not included with the recorder.
Input and Output Options
Specification
Video Input(Switchable) - 1xHDMI,1xVGA,1xCVBS,1xYPbPr
Video Resolution : 4096x2160p30,1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i
Loop Out to external monitor : 1xHDMI(1080p)
Audio : HDMI/RCA Audio/External Line In
Display Screen : 3 Inch
Remote Control : Yes
Screeshot in Recording : Yes
Playback : Yes
Record Resolution : 1920x1080/1280x720/1280x1024/1024x768
Storage Device : Flash USB Drive(up to 512G),Harddisk(up to 8T),SD(up to 512G)
Storage File System : FAT32/exFAT/NTFS
Record Format : MP4(H.264 Codec)
Video Bitrate: Low 4MB/Mid 10MB/High 18MB
Audio Bitrate : 128KB
Size of Each File : 4G(FAT32) or 16G(NTFS/exFAT)
Schedule Recording : Support
Record Resolution
1920x1080/1280x720/1280x1024/1024x768
Compatible UVC/UAC : Yes
Comatible System : Win10/Mac OS/Linux
Compatibility with 3rd application software : OBS/Xsplit/Wirecast/FLME/QuickTime/VLC
Language : English/Chinese/Janpanese/Italian
Dimension (W×L×H) : 158x70x25 mm
Package(W×L×H): 186x145x78mm
Net/Gross Weight : 0.18kg/0.6kg
Temperature : 0-55(Work),-20-80(Storage)
Power/Consumption : 12V DC 1.0A/5w
Included in Package
REC-365R - 1pcs
MMC Cable - 1pcs
HDMI to HDMI Cable 1.2M - 1pcs
USB Cable 0.8M - 1pcs
Power Adapter 12V1A - 1pcs
Remote Control - 1pcs
Note : Battery not included, HDMI to DVI Cable not included
