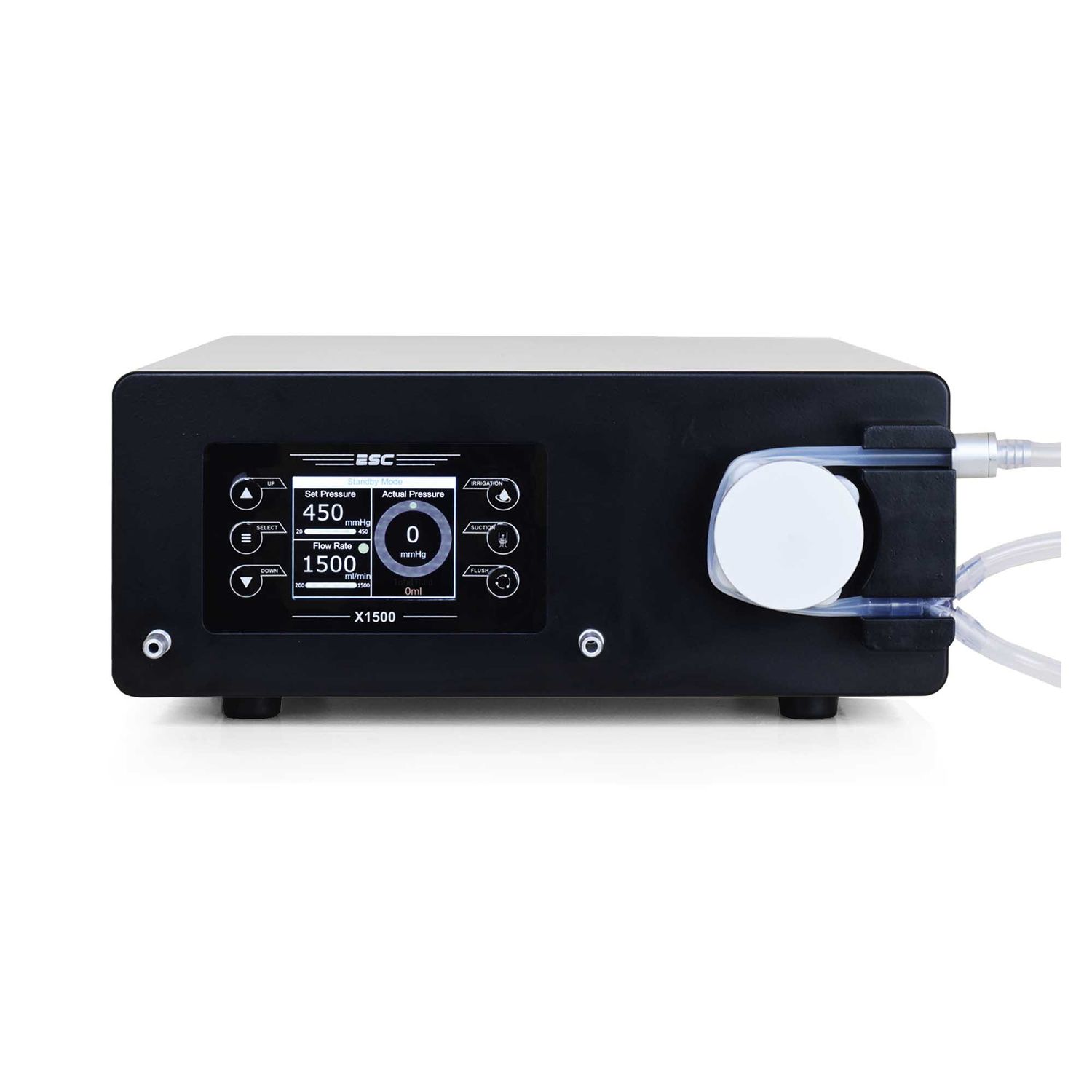

Suction and Irrigation Pump
The ESC Medicams X1500 Hysteroscopy Fluid Management Pump is a suction and irrigation pump dedicated to laparoscopy and hysteroscopic surgeries. The optimum adjustment of pressure and flow parameters allows for effective tissue rinsing and effective aspiration of fluid during laparoscopic procedures.
For saving costs and space, ESC Medicams has developed a multi functional pump. The Pump combines four applications in one unit. The simple handling as well the safety feature for every application complete the design of the pump.
For Laparoscopy, Gynecology, Urology, Arthroscopy
The four fields of application (Laparoscopy, Gynecology, Urology, Arthroscopy) in one unit can be configured individually, appropriate to the needs of the user, and include all specific functions of requirements and safety. Furthermore the easy handling and control of the indication screen allow the surgeon a reliable, simple and safe operation workflow.
Key Features:
Precision Fluid Control:
- Our Hysteroscopy Fluid Management Pump offers unparalleled control over fluid dynamics. With automatic pressure and flow rate adjustments, you can ensure a consistent and precise operative field, enhancing visibility and procedural accuracy.
User-Friendly Interface:
- Experience a seamless user experience with our intuitive touch screen interface. The easy-to-navigate menu and pre-set procedural modes allow for quick setup and operation, minimizing downtime and maximizing efficiency.
Efficiency and Reliability:
- Designed for reliability, our pump reduces procedure time and ensures consistent performance. Its compact design and robust build make it an essential addition to any gynecological practice, enhancing overall workflow and patient outcomes.
Applications
🔹 Gynecology (Hysteroscopy)
- Precise uterine distension pressure control.
- Safe irrigation during diagnostic and operative hysteroscopy.
🔹 Urology (Endourology)
- High-flow irrigation for cystoscopy, TURP, URS, and PCNL procedures.
- Adjustable suction for delicate stone retrieval and resection.
- Maintains continuous visual clarity even in bleeding conditions.
🔹 General Surgery (Laparoscopy)
- Supports laparoscopic irrigation and suction for advanced procedures.
- Facilitates blood and debris clearance during surgery.
Technical Specifications
Voltage range (V) AC - 100 - 240 V~
Supply frequency (Hz) 50/60 Hz
Operating conditions : 5-40 °C,
Relative Humidity: 30-95%,
air pressure : 3000 m max. operating altitude above sea level
Storage, transport and shipping conditions: -20 to +60 °C
10 to 90 % rel. atmospheric humidity , 70 to 106 kPa air pressure
Nominal flow range Hysteroscopy: 200 - 1500 ml/min (max. flow)
Pressure 20 - 450 mmHg
Dimensions (W x H x D) : 330 mm x 140 mm x 410 mm
Weight : 8 kg
Irrigation tube Set : 3 m length, with Y-piece, with luer-lock connector.
Power cable : 3 m,
Cable length: 3 m
Foot Switch Cable length: 3 m
