Portable USB Endoscopy Camera
Overview

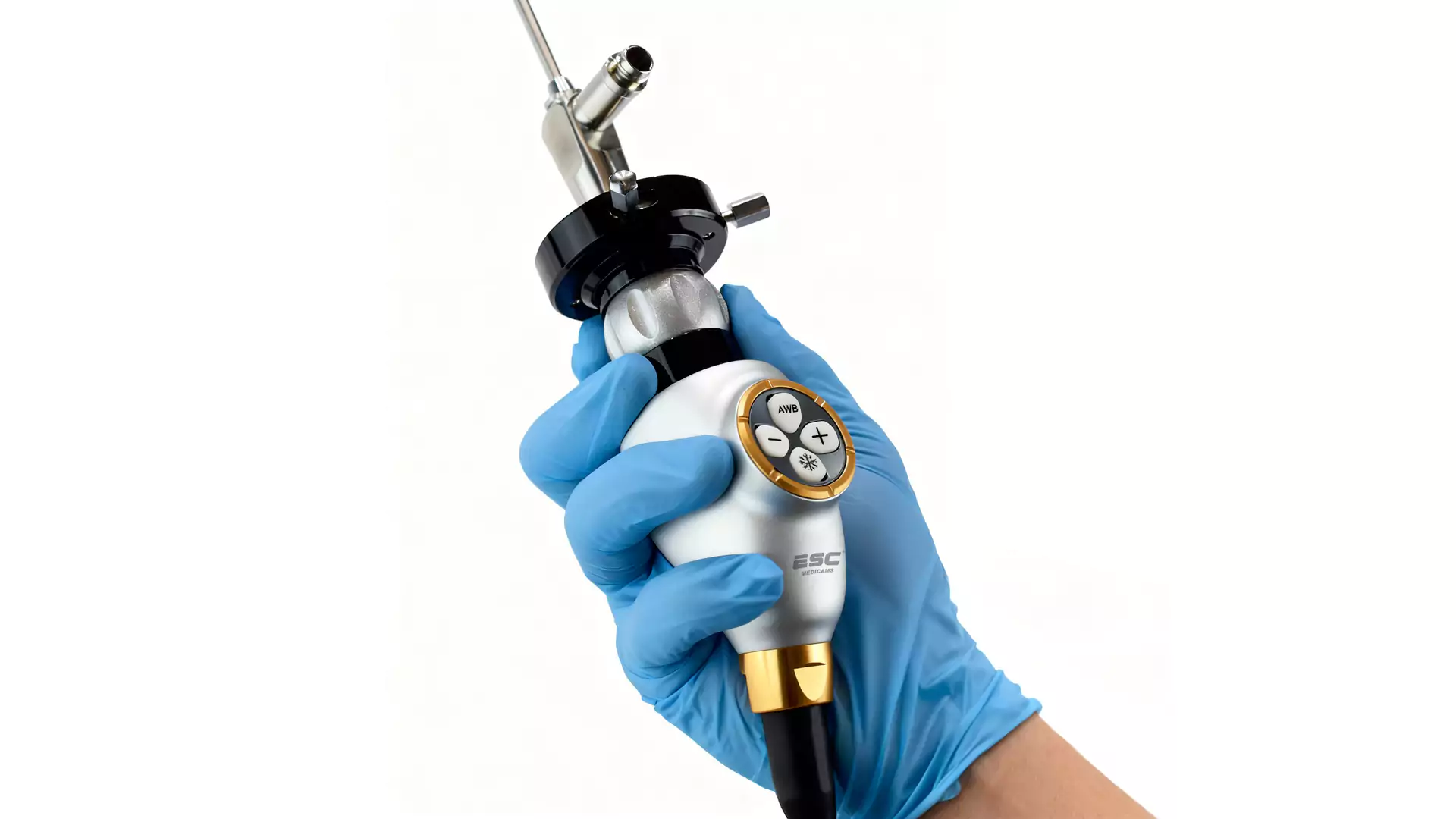

Portable Endoscopy Camera 2100P
The Portable Endoscopy Camera is an affordable and efficient solution for ENT and veterinary diagnostics. Its lightweight, handheld design connects instantly to any PC or monitor via USB, offering smooth and convenient examinations. Equipped with a 1 MP CMOS sensor, the camera delivers clear visuals and includes one-touch white balance, freeze, and brightness control directly on the camera head. With its included software, users can easily capture images and record videos for documentation and review.
Features
USB Plug-and-Play Connectivity
ESC Medicams USB endoscopy camera connects directly to any computer via USB, making setup quick and effortless. It includes user-friendly software for Windows and Mac, allowing you to record videos and capture snapshots directly on your PC.
High Resolution 1 Megapixel with CMOS Sensor
Experience clear, high-definition imaging at an economical price. The 1-megapixel resolution combined with a CMOS sensor delivers image quality equivalent to HD cameras

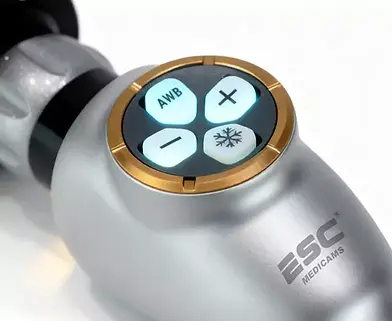

Adjustable Brightness to control LED Light
Fine-tune illumination with + and - buttons for different LED light sources and achieve optimal visibility in various diagnostic conditions.
Adjustable White balance for color accuracy
Instantly correct color tones , giving clear and true-to-life visuals for reliable ENT and veterinary diagnostics.
Freeze image with one click
Instantly lock the live image on the screen. This makes it easy to analyze details and capture reference frames
Compatible with Rigid Endoscopes
Portable Endoscopy camera is compatible with all standard rigid endoscopes using a universal camera coupler
​Windows and Mac compatibility
Includes dedicated software for recording videos and capturing images on Windows or Mac
Clinical Applications
ENT – Ear, Nose & Throat Examination
The camera is ideal for ENT examinations, offering clear visualization of the ear canal, nasal cavity and Throat. With real-time viewing and image capture, it supports efficient diagnosis and documentation during routine ENT OPD procedures.
Veterinary – Small & Large Animal Diagnosis
The camera is highly useful for veterinary diagnostics, offering clear visualization for both small and large animals
Office-based laryngoscopy
The camera is well-suited for office-based laryngoscopy, providing clear imaging of vocal cords and larynx during routine examinations
Connectivity
Directly connect to monitor
Connect to monitor or TV with rca composite input option and connecting power input to DC12V power adapter
Connect to computer
Connect to computer using Usb adapter which is available optionally
Connect to portable medical recorder
Record high quality videos and take images and store them directly in USB drive upto 512 Gb while viewing live images simultaneously.
What's Included
1.) Camera Head with cable
2.) Power adapter (Power plug can be provided as per country)
3.) USB Adapter (Optional)
4.) Software CD (can be downloaded from website also)
5.) USB Cable.
​
NOTE: Rigid endoscope or Light source is not included
Accessories at extra cost
- Portable Recorder with Screen
- Portable 10 Watt Led Light source
- AV to HDMI converter to connect to monitor directly.
​
Note : Above items are NOT included with camera by default. It needs to be purchased separately if required
Specifications
Camera Head Specifications
- Resolution - 1 Megapixel ~ 1200 TV Lines
- Frame Rate - 30 Fps / 25 Fps
- Chip : Sony 1/3” CMOS Sensor
- Effective Pixels : 1280 (H) x 720 (V) = 1 Megapixels
- Output Resolution : 720p @30/25 Fps.
- Output Format from camera : RCA / Composite output
- Output Format from USB adapter : USB to PC
- Mounting Port - C-Mount
- White balance : Manual / Adjustable with one press key.
- Brightness : Adjustable from camera head keys.
- Preferred Monitor : Monitor with 1 billion color support
- Power input to camera : 12V DC (no need power adapter to connect to PC.)
​
USB Adapter Specifications
- Output Port : USB
- Input Port : RCA , DC
- RCA input : Connect Camera RCA port
- DC input : Connect Power port from Camera
- Software : OBS Studio
- Min PC Requirement : Windows 10, 8 GB RAM, Graphics card 2GB
- Recording Resolution : 720p
​
Recorder Specifications (Optional)
- Output Port : HDMI
- Input Port : AV and S-Video
- Screen Size : 3 Inch
- PC Interface : Type-C
- Max capture resolution : 1080P (upscaled)
- Playback : Yes
- Recording Resolution : 480 / 576 / 1080p (upscaled)
- File size : 4GB / 16GB
- Supported USB Flash Drive : Max 512 GB.
- Supported SD Card : Max 512 GB.
- Supported Hard Disk : Max 2 TB.
​
Product features, specifications & prices are subject to changes without any prior notice Products, features, images shown above are for representation purpose only. Actual may vary.
